Mobile C-arms for Orthopedics

Highlighted products for this procedure

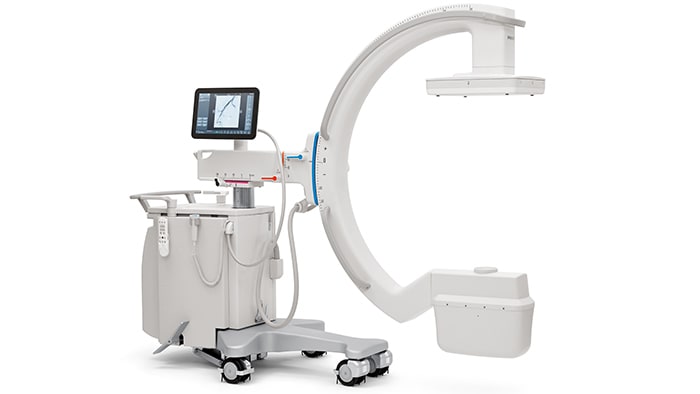

Zenition 70 mobile C-arm with Flat Detector

Enhance image quality and dose efficiency in complex and dense anatomy

Reduce miscommunication and positioning errors¹

Increase OR efficiency with user-friendly controls

Simplify fleet use and management across ORs

Safeguard performance and patient data with Windows® platform

With our fourth generation Flat Detector systems, you gain exceptional image clarity of dense and complex orthopedic anatomy. The compact form provides ample space and positioning ease during spine, pelvis and hip procedures. Our Position Memory² increases first-time-right positioning to reduce scout images³ for more efficient workflow in orthopedic cases.

The Zenition 70 series is available in two detector sizes: the FD 26 cm x 26 cm offers broad anatomical coverage, while the FD 21 cm x 21 cm provides ample space to work around patients.

Explore Zenition 70

View the Zenition family

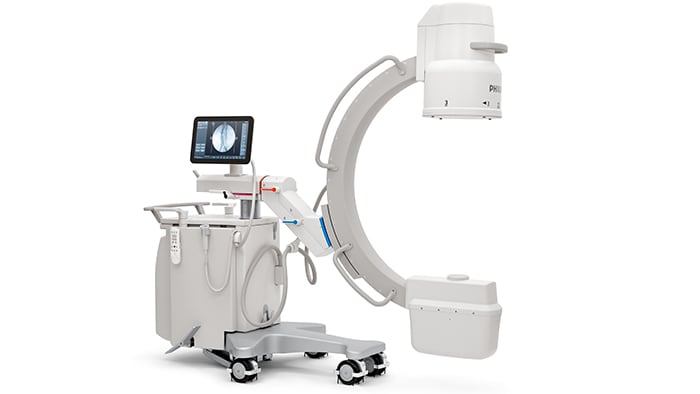

Zenition 50 mobile C-arm with Image Intensifier

Improve visibility of dense anatomy and manage dose efficiently

Save time during orthopedic procedures with Unify workflow¹

Easily operate by one user through fully counterbalanced C-arm

Train users fast with point-and-shoot design and on-screen guidance

Handle many service issues with remote support to save time and money

Point-and-shoot simplicity and reliable uptime make these the ideal systems for intensive use across diverse orthopedic procedures. Users quickly feel comfortable using the Zenition mobile C-arm thanks to intuitive touch controls and easy user interface. It scored in the top 12% for best system usability.¹

The Zenition 50 Series comes with a 12-inch and 9-inch image intensifier and can go wherever you need it - surgery, intensive care and the emergency room.

Explore Zenition 50

View the Zenition family

Zenition 50 Mobile C-arm with Image Intensifier

Zenition DoseWise: Ensures low X-ray dose for patients and staff

Strategies to reduce radiation exposure to patients and medical staff during interventional procedures are currently receiving close scrutiny in the healthcare community. Philips DoseWise Zenition is a unique combination of techniques, programs and practices, built into our Zenition mobile C-arm solutions. Combined, they provide clinically relevant image quality during orthopedic, trauma and other interventional applications, while efficiently managing radiation exposure to patients and medical staff.

Download the DoseWise White Paper (1.76MB)

Zenition’s unique dose control features³

Up to 90%

reduction in X-ray dose by selecting clinically optimized acquisition protocols from the wide range of dose-frame rate combinations.⁴

Up to 49%

reduction in Dose Area Product (DAP) with Automatic Shutter Positioning protects patient anatomy and in-room personnel from unnecessary exposure.⁴

40% reduction

in patient skin dose through additional copper and aluminum beam filtration, which increase the quality of the X-ray beam.⁴

Philips technologies for Orthopedics

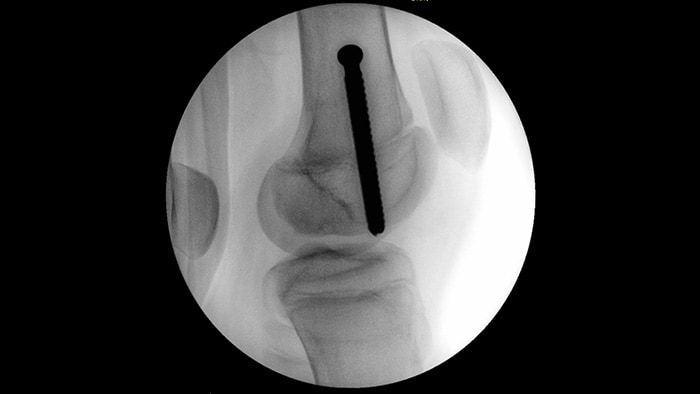

Automatic image enhancement

MetalSmart automatically excludes metal artifacts caused by metal implants to provide higher image quality and efficient dose control during orthopedic procedures and patients with metal implants, compared to systems without metal exclusion. BodySmart promotes first-time-right imaging and dose efficiency by automatically adapting the measuring field to the area of interest.

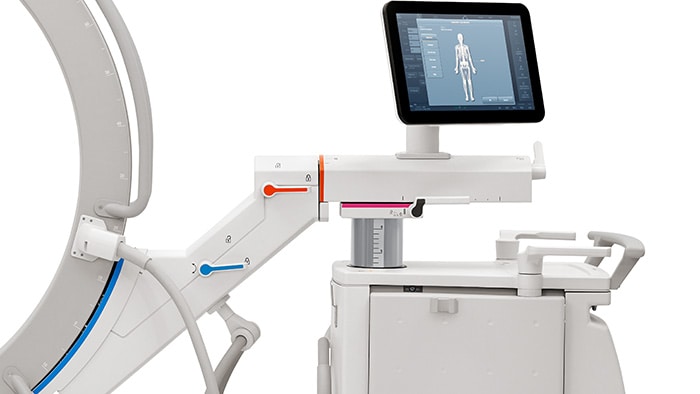

Unify workflow

When setting pedicle screws for a spinal fusion or fracture repair, reducing

technical distractions and discussions can help surgical teams remain focused on the patient. With Unify workflow’s navigation aids, surgical teams experienced smoother interactions and less miscommunication in a usability study.¹

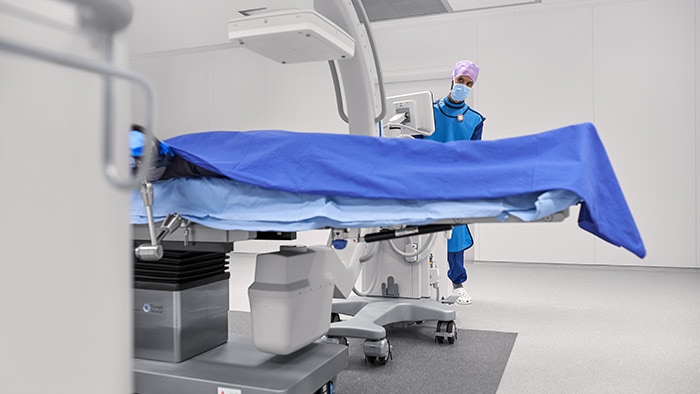

Optimal C-arc depth

The optimal depth of the fully counterbalanced C-arm provides ample room to position around obese patients and image the lumbar spine and hip. It supports over the table positioning, even with tables that have a large base.

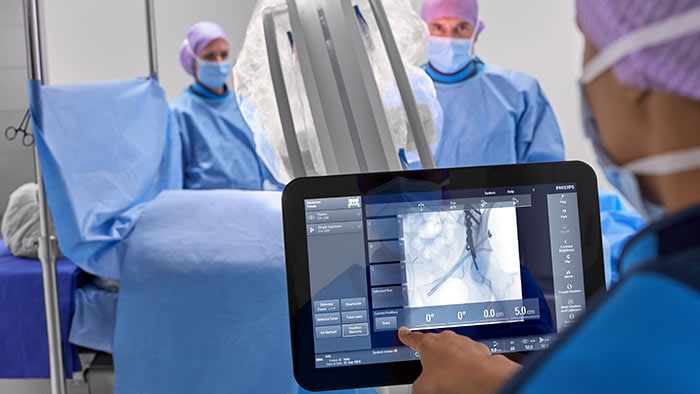

Position Memory

Simplify workflow for challenging orthopedic cases requiring frequent re-positioning of the mobile C-arm. With Position Memory,² participants in a usability study¹ achieved 94% first-time-right repositioning and experienced less frustration during (re)positioning tasks.

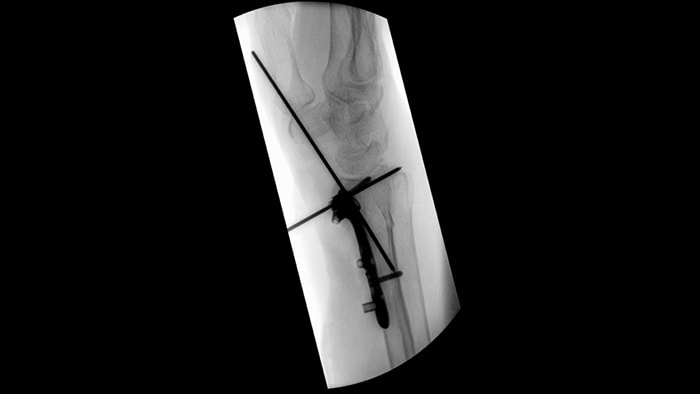

Asymmetric Collimation

Unique asymmetric shutters increase collimation flexibility and help you collimate the anatomy using independent shutter placement with a fingertip. You can adjust shutters and image orientation while on last image hold without using radiation.

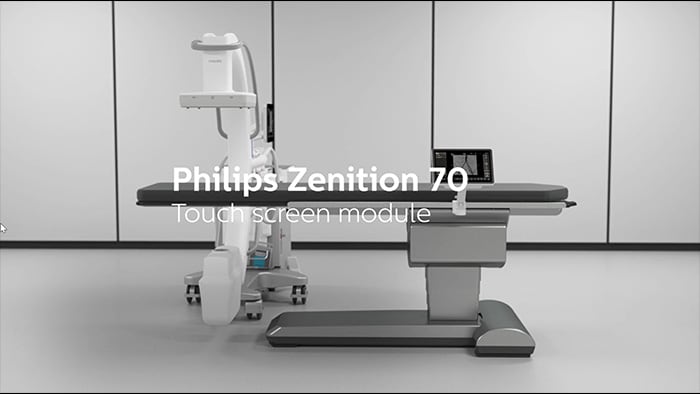

Touch screen module

The Touch screen module⁵ (TSM) is designed to deliver value by enhancing the clinical capabilities of Zenition 70. As an addition to the Zenition 70 platform, the TSM supports full table-side control for surgeons during procedures.

Let's talk
#futureofIGT

How would you improve Mobile C-arm procedures?

What do you think about IGT solutions? Are we on the right track? Connect with us via #futureofIGT

Discover what @PhilipsHealth is sharing

Go to Twitter and join the conversation

Explore the various image-guided procedures supported by mobile C-arms

Mobile C-arms for vascular

Experience greater ease and confidence during vascular interventions and surgeries with Philips Zenition mobile C-arm imaging systems.
เรียนรู้เพิ่มเติม
Mobile C-arms for pain management

Perform pain management cases with ease and confidence using Philips Zenition mobile C-arm imaging systems, offering proven ease of use and future-fit capabilities.
เรียนรู้เพิ่มเติม
Mobile C-arms for gastroenterology / urology

Carry out gastroenterology and urology procedures with greater ease and confidence on Philips Zenition mobile C-arm imaging systems.
เรียนรู้เพิ่มเติม

Disclaimer

Product availability is subject to country regulatory clearance. Please contact your local sales representative to check the availability in your country.

References

¹ Results obtained during user tests performed in November 2013 by Use-Lab GmbH, an independent company. The tests involved 30 USA based clinicians (15 physicians teamed up with 15 nurses or X-ray technicians), who performed simulated procedures in a simulated OR environment. None of them had worked with a Philips C-arm or with each other before.

² Position Memory is only available on Zenition Flat Detector systems.

³ The X-ray dose reductions refer to specific features, and will vary depending on the dose parameters selected.

⁴ Data on file. Rosink H. Dose management Zenition 50/70. DHF335436. Internal technical paper. Philips Healthcare. January 2019.

⁵ TSM is available as optional item on Zenition 70 only.
