IntelliVue XDS Mounting solution

IntelliVue XDS GCX Single Display height adjustable Wall Mount

Mounting solution

ค้นหาผลิตภัณฑ์ที่คล้ายกัน

Learn more about the options available to mount the IntelliVue XDS with Single Display on a wall.

Features
IntelliVue XDS with Single Display
IntelliVue XDS with Single Display

IntelliVue XDS with Single Display

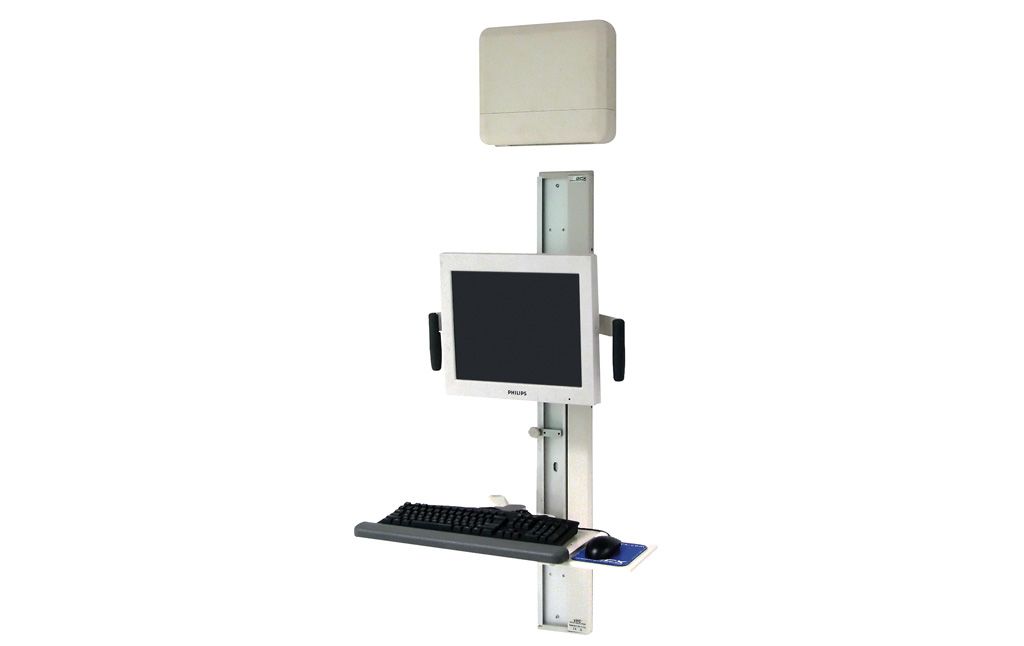

The configuration shown requires: GCX P/N: FLP-0001-11: Flat Screen flush mount with adjustable tilt; GCX P/N: WM-0010-65: Keyboard folding bracket. Keyboard folds up flat against the wall; GCX P/N: WMM-0005-04: Flush swivel mount (for keyboard); GCX P/N: PH-0066-47: Keyboard tray with padded wristrest and slide-out left/right mouse trays; GCX P/N: FLP-0008-12: Dual padded flat panel handles; GCX P/N: WC-0002-03: 13" (325mm) Wall Channel for XDS PC; GCX P/N: FLP-0001-10: Flush CPU Wall Mount for VESA standard 75mm/100mm mounting interface; GCX P/N: FWM-0001-23: 36"(90cm) VHC Height Adjustable Wall Channel for 18-23 lbs (8-10.5 kg), 12"(305cm) vertical travel.
IntelliVue XDS with Single Display1
IntelliVue XDS with Single Display

IntelliVue XDS with Single Display

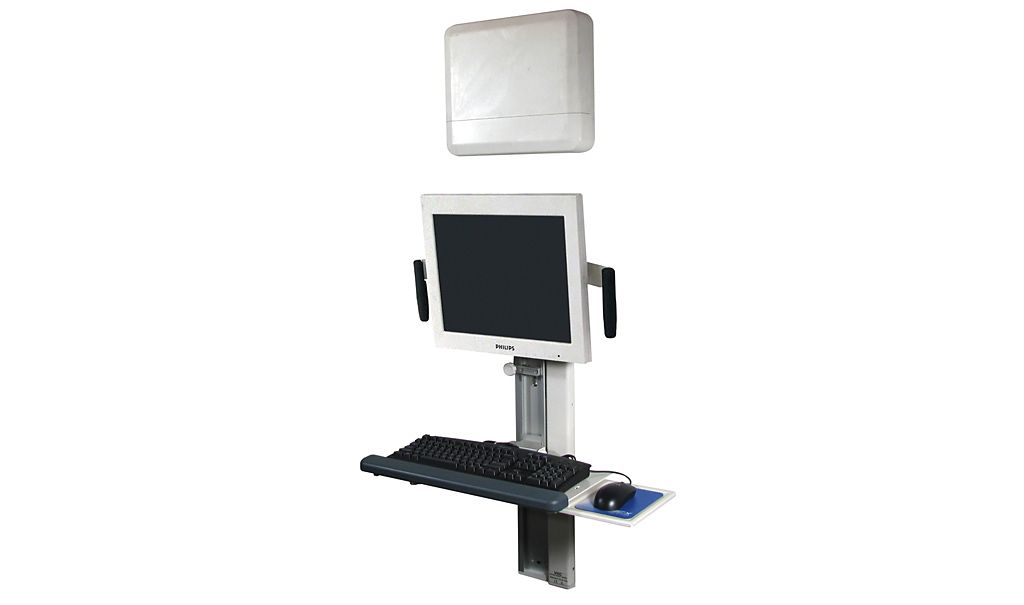

The configuration shown requires: GCX P/N: FLP-0009-04: Flat Screen flush mount with adjustable tilt and swivel; GCX P/N: WMM-0005-07: 12"(300mm) x 8"(200mm) articulating keyboard arm; GCX P/N: WM-0010-65: Keyboard folding bracket. Keyboard folds up flat against the wall; GCX P/N: PH-0066-47: Keyboard tray with padded wristrest and slide-out left/right mouse trays; GCX P/N: FLP-0008-12: Dual padded flat panel handles; GCX P/N: WC-0002-03: 13" (325mm) Wall Channel for XDS PC; GCX P/N: FLP-0001-10: Flush CPU Wall Mount for VESA standard 75mm/100mm mounting interface; GCX P/N: FWM-0001-24: 36"(900mm) VHC Height Adjustable Wall Channel for 23-28 lbs (10.5-12.5 kg), 12"(305mm) vertical travel.
IntelliVue XDS with Single Display2
IntelliVue XDS with Single Display

IntelliVue XDS with Single Display

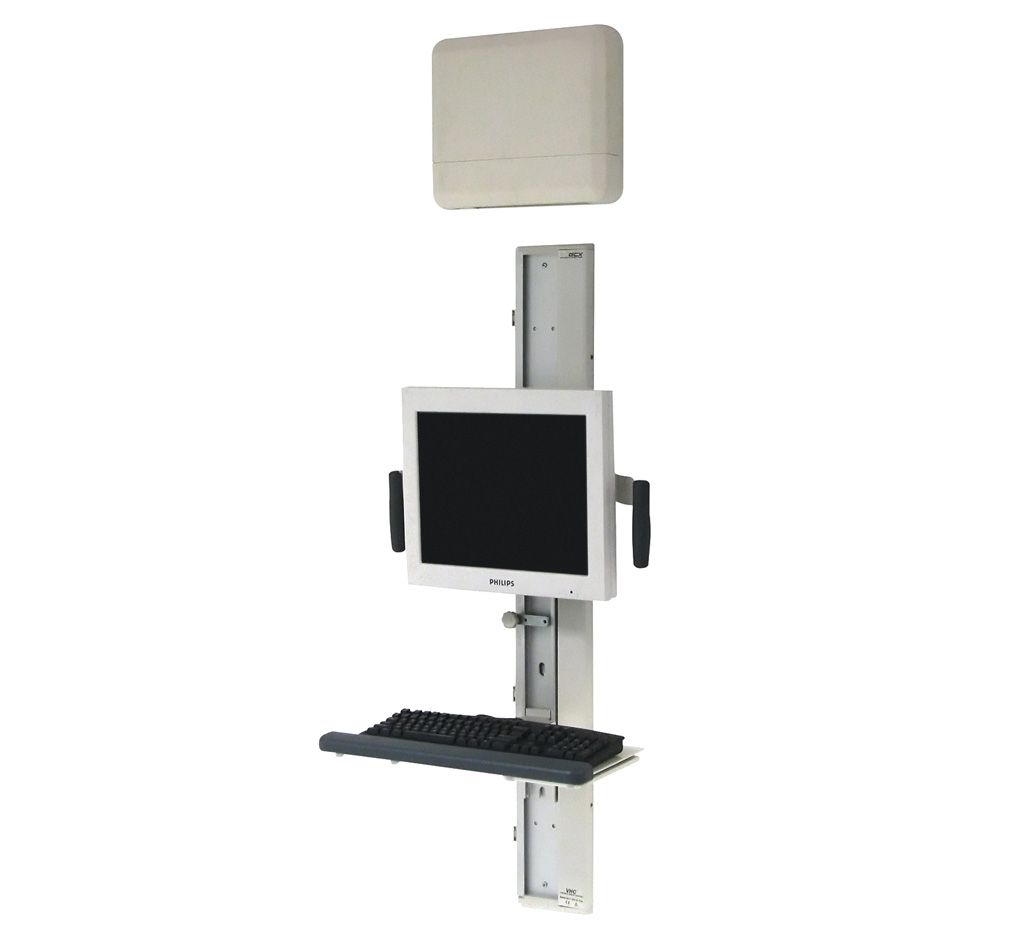

The configuration shown requires: GCX P/N: FLP-0001-11: Flat Screen flush mount with adjustable tilt; GCX P/N: WM-0010-65: Keyboard folding bracket. Keyboard folds up flat against the wall; GCX P/N: WMM-0005-04: Flush swivel mount (for keyboard); GCX P/N: PH-0066-47: Keyboard tray with padded wristrest and slide-out left/right mouse trays; GCX P/N: FLP-0008-12: Dual padded flat panel handles; GCX P/N: WC-0002-03: 13" (325mm) Wall Channel for XDS PC; GCX P/N: FLP-0001-10: Flush CPU Wall Mount for VESA standard 75mm/100mm mounting interface; GCX P/N: FWM-0001-13: 48"(1200mm) VHC Height Adjustable Wall Channel for 18-23 lbs (8-10.5 kg), 18" (457mm) vertical travel.
IntelliVue XDS with Single Display3
IntelliVue XDS with Single Display

IntelliVue XDS with Single Display

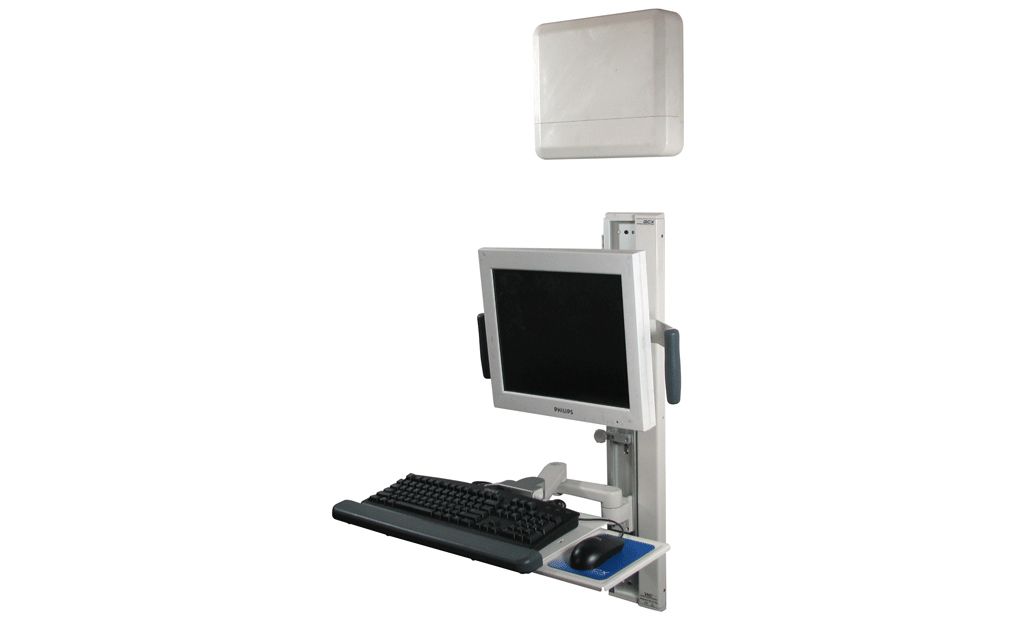

The configuration shown requires: GCX P/N: FLP-0009-04: Flat Screen flush mount with adjustable tilt and swivel; GCX P/N: WMM-0005-07: 12"(300mm) x 8"(200mm) articulating keyboard arm; GCX P/N: WM-0010-65: Keyboard folding bracket. Keyboard folds up flat against the wall; GCX P/N: PH-0066-47: Keyboard tray with padded wristrest and slide-out left/right mouse trays; GCX P/N: FLP-0008-12: Dual padded flat panel handles; GCX P/N: WC-0002-03: 13" (325mm) Wall Channel for XDS PC; GCX P/N: FLP-0001-10: Flush CPU Wall Mount for VESA standard 75mm/100mm mounting interface; GCX P/N: FWM-0001-14: 48"(1200mm) VHC Height Adjustable Wall Channel for 23-28 lbs (10.5-12.5 kg), 18" (457mm) vertical travel.
  • IntelliVue XDS with Single Display
  • IntelliVue XDS with Single Display1
  • IntelliVue XDS with Single Display2
  • IntelliVue XDS with Single Display3
See all features
IntelliVue XDS with Single Display
IntelliVue XDS with Single Display

IntelliVue XDS with Single Display

The configuration shown requires: GCX P/N: FLP-0001-11: Flat Screen flush mount with adjustable tilt; GCX P/N: WM-0010-65: Keyboard folding bracket. Keyboard folds up flat against the wall; GCX P/N: WMM-0005-04: Flush swivel mount (for keyboard); GCX P/N: PH-0066-47: Keyboard tray with padded wristrest and slide-out left/right mouse trays; GCX P/N: FLP-0008-12: Dual padded flat panel handles; GCX P/N: WC-0002-03: 13" (325mm) Wall Channel for XDS PC; GCX P/N: FLP-0001-10: Flush CPU Wall Mount for VESA standard 75mm/100mm mounting interface; GCX P/N: FWM-0001-23: 36"(90cm) VHC Height Adjustable Wall Channel for 18-23 lbs (8-10.5 kg), 12"(305cm) vertical travel.
IntelliVue XDS with Single Display1
IntelliVue XDS with Single Display

IntelliVue XDS with Single Display

The configuration shown requires: GCX P/N: FLP-0009-04: Flat Screen flush mount with adjustable tilt and swivel; GCX P/N: WMM-0005-07: 12"(300mm) x 8"(200mm) articulating keyboard arm; GCX P/N: WM-0010-65: Keyboard folding bracket. Keyboard folds up flat against the wall; GCX P/N: PH-0066-47: Keyboard tray with padded wristrest and slide-out left/right mouse trays; GCX P/N: FLP-0008-12: Dual padded flat panel handles; GCX P/N: WC-0002-03: 13" (325mm) Wall Channel for XDS PC; GCX P/N: FLP-0001-10: Flush CPU Wall Mount for VESA standard 75mm/100mm mounting interface; GCX P/N: FWM-0001-24: 36"(900mm) VHC Height Adjustable Wall Channel for 23-28 lbs (10.5-12.5 kg), 12"(305mm) vertical travel.
IntelliVue XDS with Single Display2
IntelliVue XDS with Single Display

IntelliVue XDS with Single Display

The configuration shown requires: GCX P/N: FLP-0001-11: Flat Screen flush mount with adjustable tilt; GCX P/N: WM-0010-65: Keyboard folding bracket. Keyboard folds up flat against the wall; GCX P/N: WMM-0005-04: Flush swivel mount (for keyboard); GCX P/N: PH-0066-47: Keyboard tray with padded wristrest and slide-out left/right mouse trays; GCX P/N: FLP-0008-12: Dual padded flat panel handles; GCX P/N: WC-0002-03: 13" (325mm) Wall Channel for XDS PC; GCX P/N: FLP-0001-10: Flush CPU Wall Mount for VESA standard 75mm/100mm mounting interface; GCX P/N: FWM-0001-13: 48"(1200mm) VHC Height Adjustable Wall Channel for 18-23 lbs (8-10.5 kg), 18" (457mm) vertical travel.
IntelliVue XDS with Single Display3
IntelliVue XDS with Single Display

IntelliVue XDS with Single Display

The configuration shown requires: GCX P/N: FLP-0009-04: Flat Screen flush mount with adjustable tilt and swivel; GCX P/N: WMM-0005-07: 12"(300mm) x 8"(200mm) articulating keyboard arm; GCX P/N: WM-0010-65: Keyboard folding bracket. Keyboard folds up flat against the wall; GCX P/N: PH-0066-47: Keyboard tray with padded wristrest and slide-out left/right mouse trays; GCX P/N: FLP-0008-12: Dual padded flat panel handles; GCX P/N: WC-0002-03: 13" (325mm) Wall Channel for XDS PC; GCX P/N: FLP-0001-10: Flush CPU Wall Mount for VESA standard 75mm/100mm mounting interface; GCX P/N: FWM-0001-14: 48"(1200mm) VHC Height Adjustable Wall Channel for 23-28 lbs (10.5-12.5 kg), 18" (457mm) vertical travel.
